Name: Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery
Brand: THLB
Price: 540 USD

Brand Name : THLB

Model Number : 24v20Ah

Place of Origin : China

MOQ : 2 pieces

Price : $540/pieces 10-49 pieces

Payment Terms : T/T

Delivery Time : 7-15 Working Days

Packaging Details : Standard Packaging

Cycle Life : 1500 cycles

Application : Electric Wheelchairs, Golf Carts, Electric Bicycles/Scooters

Operating Temperature(℃) : -20-60

Cathode Materials : LiFePO4

Voltage : 72V

Capacity : 50Ah

Category : Rechargeable Batteries pack

Cycle Characteristic : 2000 times

Working Temperature : -20°C~60°C

Battery Weight : 6.8±0.2 kg

Color : black

Contact Now

3600Wh Lithium Iron Phosphate Battery Pack 72V 50Ah AGV Lifepo4 Battery

High-performance AGV Lithium Iron Phosphate battery pack with 2000 cycles lifespan and wide operating temperature range of -20°C to 60°C.

Product Images

Product Specifications

Normal Voltage	72V
Normal Capacity	50Ah
Battery Energy	3600Wh
Inner Resistance	< 60mΩ
Battery Cycle Life	2000 Times @100%DOD 6000 Times @80%DOD
Reference Battery Weight	6.8±0.2 kg
Battery Encapsulation	Metal Case
Charge Voltage	82.8V
Charge Mode	CC/CV
Normal Charge Current	<=20A
Normal Discharge Current	25A
Max. Continuous Output Current	50A
Max. Continuous Output Power	3600W
Operation Temperature Range	Charge: 0°C - 45°C Discharge: -20°C - 60°C
Battery Storage Temperature	-20°C - 25°C

Safety Performance Classification

Comprehensive Safety Testing for Industrial Applications

Resistance to heavy loads - tested to prevent ignition or explosion
Resistance to thermal shock - tested to prevent ignition or explosion
Anti-overcharge protection - tested to prevent ignition or explosion
Resistance to overdischarge - tested to prevent ignition or explosion
Resistance to short circuit - tested to prevent ignition or explosion
High temperature storage stability - tested to prevent leakage, smoke, fire or explosion
Anti-heating protection - tested with no battery penetration through safety screen
Anti-puncture resistance - tested to prevent ignition or explosion
Anti-extrusion durability - tested to prevent ignition or explosion
Resistance to low pressure - tested to prevent leakage, smoke, fire or explosion
Constant damp heat resistance - maintains capacity above 90% of rated value
Anti-vibration performance - maintains normal operation under stress
Anti-collision durability - maintains normal operation after impact
Temperature cycling stability - maintains capacity above 70% of initial state
Flame retardant properties - meets GB/T2408-2008 FH-1 and FV-0 standards
Insulation resistance - exceeds 2 MΩ for metal casing models

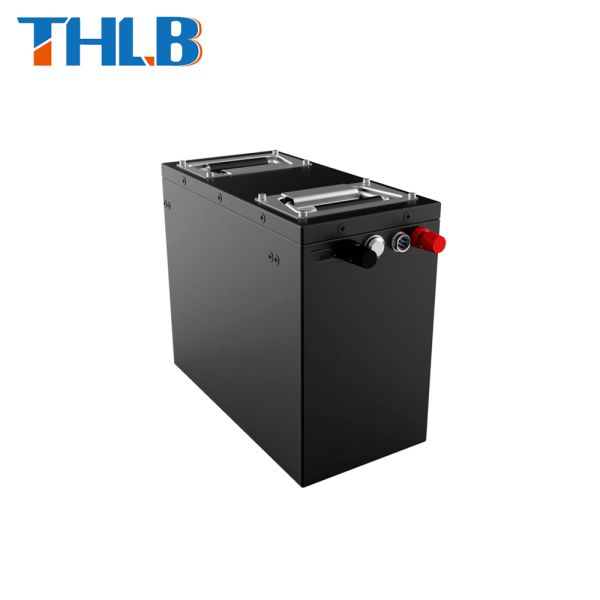

Additional Product Images

Quality AGV Lithium Battery Pack 72V 50Ah Lifepo4 Battery

72V 50Ah AGV lithium battery
